銅片線餅組裝機
- 產品分類：銅片線餅組裝機
- 創建時間：2023-09-26 10:30:57
- 瀏覽次數：0次

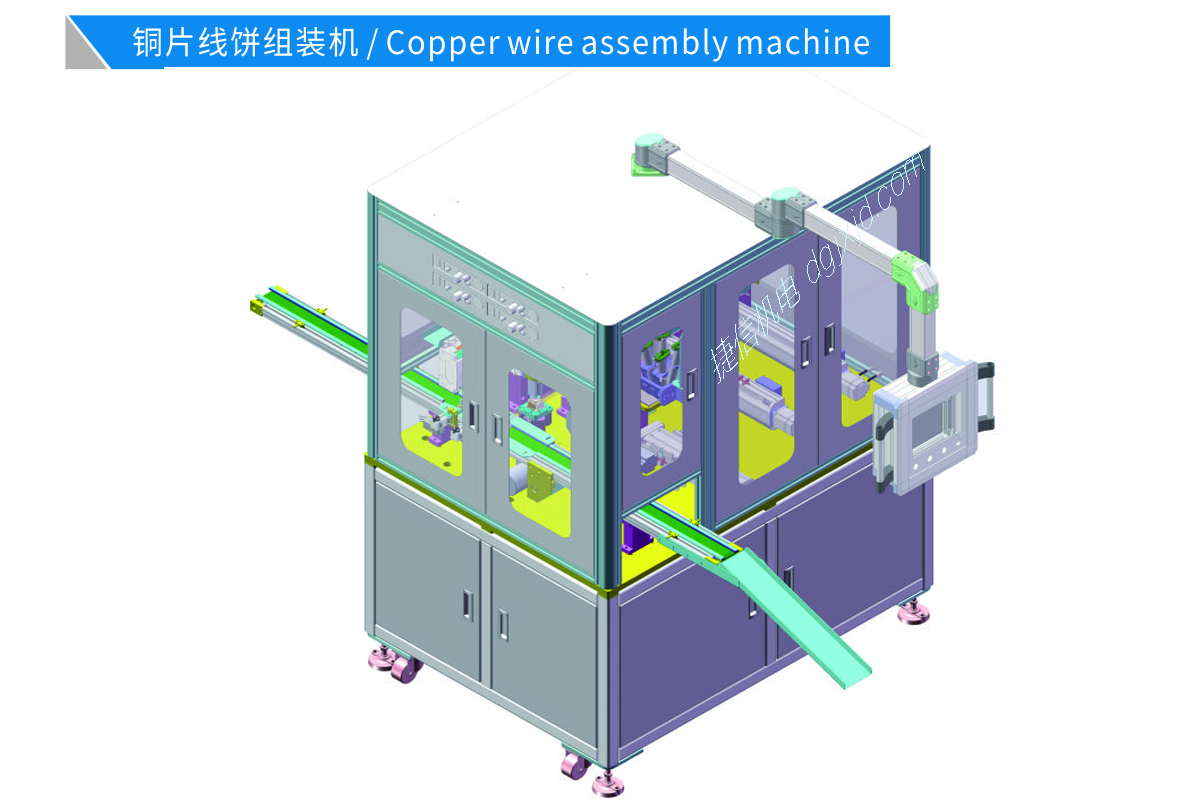

銅片線餅組裝機
想要了解更多產品特性詳情，跟我們聯系吧！
13925516124
產品詢價
13925516124
產品詢價
主要用于 Mainly used for
主要應用于：PQ系列變壓器，廣泛在服務器、5G通信等各種高端通信設備上使用。
Mainly used in: PQ series transformers, widely used in various high-end communications such as werver/5G communication equipment.
設備介紹 Equipment introduction

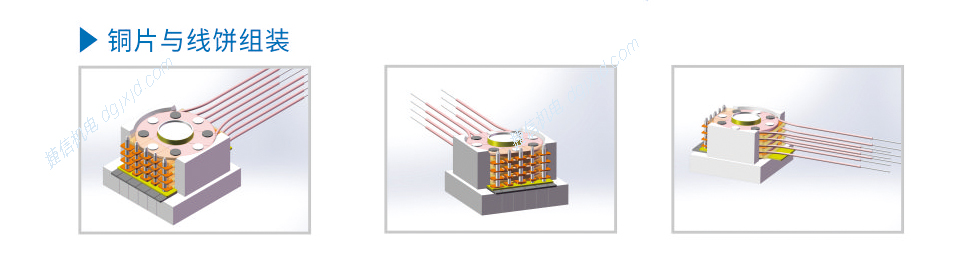

? 各種疊片載座來料，機械手取需要的片料，點環氧樹脂膠水，疊片到載座或磁芯上，重復疊片。
All kinds of lamination carrier feeding , robotic need for sheet material , point epoxy glue , lamination to carrier or core , Repeating the lamination.
? 機臺預留可加流水線多臺相連共用高溫爐。
The machine is reserved for the addition of a plurality of connected automatic lines to share the high temperature furnace.
參數規格 Specifications
| 稼動率Utilization rate | >90% | 開發周期 L/T | 45~55天 / 45~55days |
| 良率 Yield | >98% | 氣壓 Air pressure | 5~8Kgf/cm2 |
| 產能 Production capacity | 4s/pcs | 電壓 Voltage | AV 220V |
